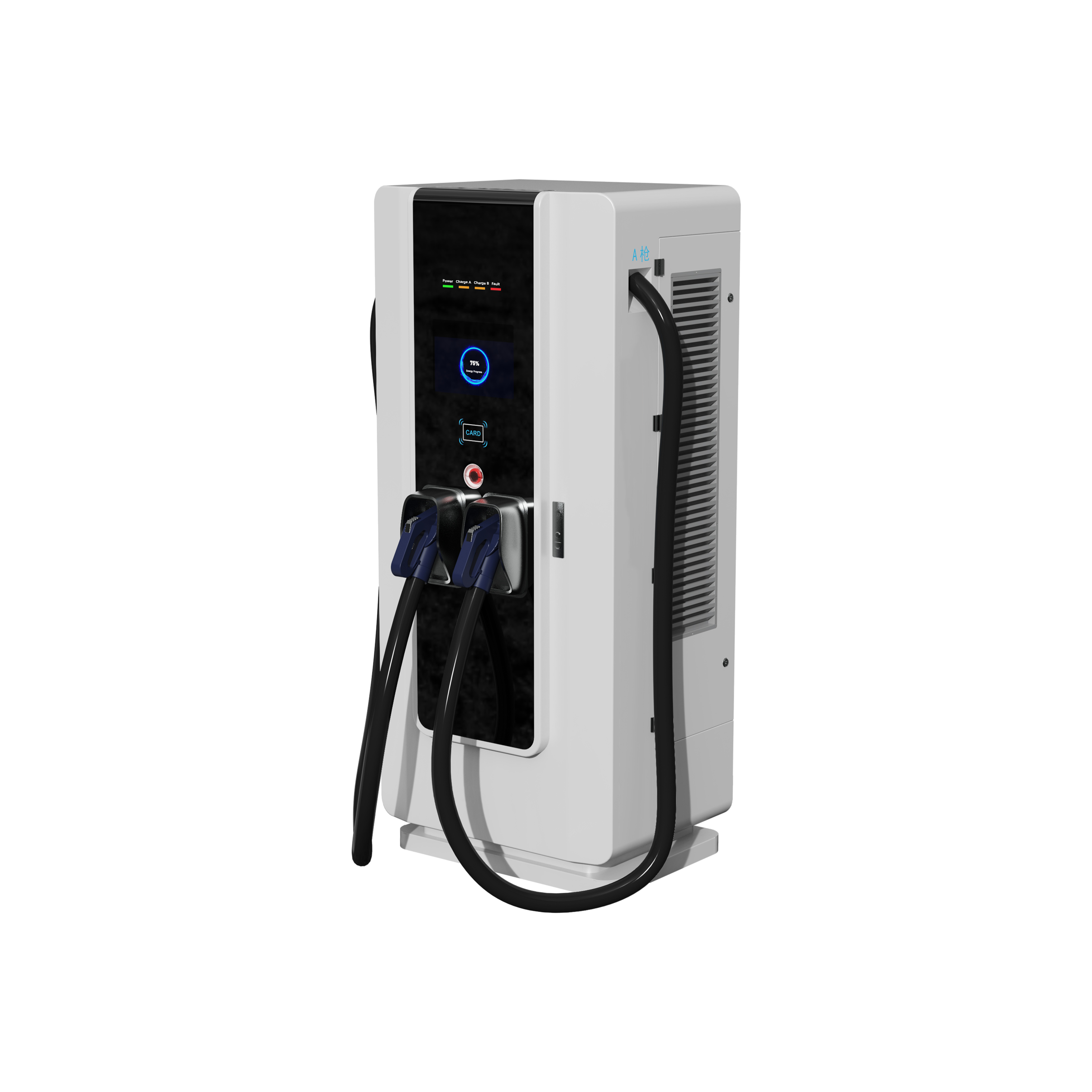

120KW OCPP1.6J CCS2 DC Ground-mounted FAST EV Charger | Human-Machine Interaction | IP54 | Multi-Language

$6500.00
469 Views
120KW Integrated CCS2 Dual-Guns Charger: Power Your Future with Intelligence
Our 120kW integrated CCS2 dual-connector charger represents the next generation of fast-charging technology for the global EV market. Engineered with an advanced constant-power module (300-1000V), it delivers high-speed charging across a wide voltage range. The modular design ensures stable performance and easy maintenance, while our proprietary smart power allocation system optimizes charging for vehicle safety and battery longevity.

Equipped with user-friendly dual-language touchscreens, comprehensive safety protections, and compatibility with global payment systems including POS and VISA , this charger offers both reliability and operational flexibility. Whether deployed in public networks or commercial fleets, it provides a future-ready solution that combines intelligent control, robust connectivity, and trusted performance.
Get a Quote
Category :
Description
Item Parameter NameSPECIFICATIONS
Input CharacteristicsPower Supply Three-Phase
Input Voltage380Vac±15%
Rated Voltage380Vac
AC Input Frequency50Hz/60Hz
Power Factor0.99
Safety FeaturesSurge Protection
Output CharacteristicsOutput Voltage200Vdc-1000Vdc
Maximum Output Current 250A
Rated Current120A
Rated Power120kW
Charging ModeDC Fast Charging
Charging Connector TypeCCS2
No. of Charging ConnectorsDual Connectors
Charging Efficiency94%
Metering MethodEnergy Meter
Safety FeaturesOvervoltage/Under voltage, Overcurrent, Short circuits, or, Overheating Protection
User Interface and InteractionDisplay Type7-inch Industrial display Touch Screen
Status IndicatorsPower, Charging, Fault
User Interface LanguageMulti- language Support
Emergency StopAvailable
Communication and ConnectivityNetwork Connection4G/Standard RJ45 Interface
Communication Protocol OCPP1.6J
Authentication (Activation)QR Code, APP / RFID card reading
Environmental CharacteristicsOperating Temperature-20~50℃
Humidity Range5%-95%
Working Altitude < 2000m
Electrical SafetyDielectric Strength≥2000V
Leakage Current≤100mA
Mechanical CharacteristicsHousing MaterialSheet Metal
Protection RatingIP54
Cooling Method Air Cooling
Installation TypeGround-Mounted
Cable Length5m
Warranty  and ServiceWarranty PeriodTypically 2 Years with remote support
Customer SupportOnline Chat support
