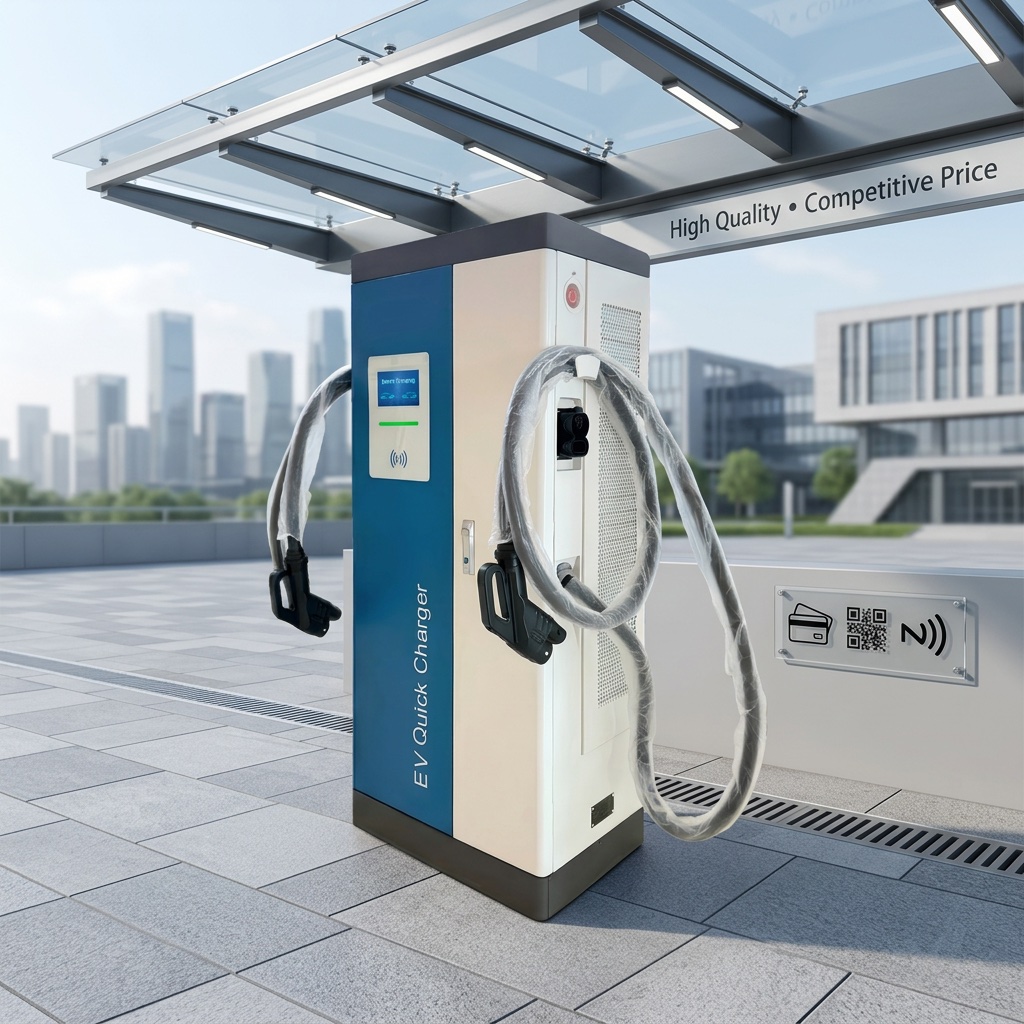

DC Fast EV Charger with 120kW-360kW Series,CE,OCPP1.6J,GBT/CCS1/CCS2/,RFID/QR Code/POS Payment,Competitive Price,Full Support

$4198.00

10 Views

1.High Output Power: Supports up to 360 kW for rapid charging.
2.Multiple Payment Options: Accepts RFID, QR Code, and POS payments.
3.Compact Design: Easy to install and integrate into various settings.
4.OCPP 1.6J Compatibility: Ensures seamless interoperability with existing systems.
5.Versatile Compatibility: Supports CCS and DC interfaces.
6.High Quality with Competitive Price

Get a Quote

Category :

DC Charger

Description

Product Model	E4X1-120-F2L6 E4X1-160-F2L6 E4X1-180-F2L6 E4X1-240-F2L6

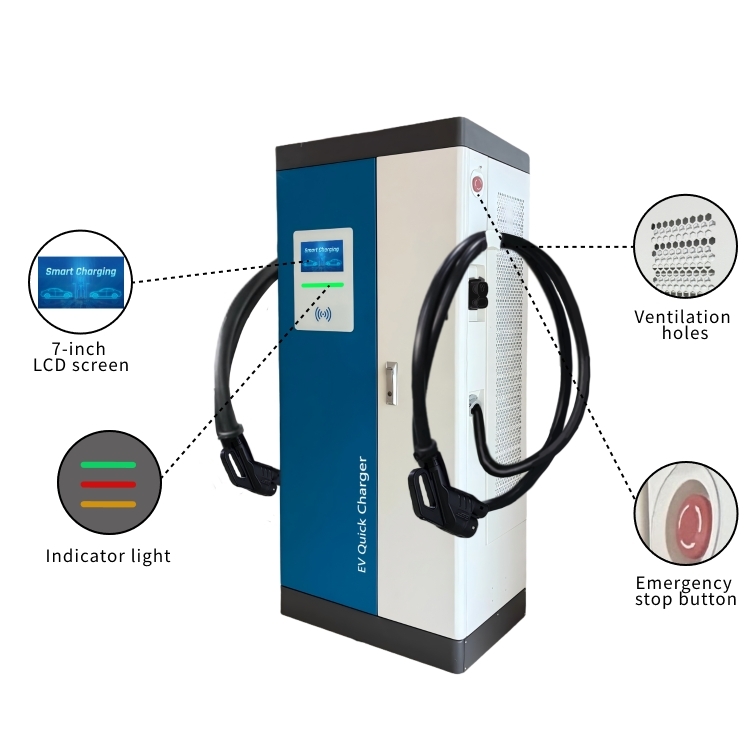

User Interface	7-inch LCD touch screen
Weight (including packaging)	251~305kg
Way to Install	Floor-standing
Wiring Method	downcomer
Number of Charging Guns	Double Guns
Communication Method	Ethernet + 4G
Homo Sapiens-Machine Interface	Display screen, LED display light
Rated Voltage	380VAC±20%; 50Hz ; L1+L2+L3+N+PE
output current	250A
Rated Power	160/180/240/360kW
Work Environment	Altitude ≤2000 m; Temperature-30℃~50℃; Humidity 5%~9 5 % (non-condensing)
Charging Method	APP/Scan Card/Plug and Play
Defensive Function	Over voltage/Under voltage/Overcurrent/Leakage current/Over temperature/Surge/Insulation/Access control/Fume/Water immersion/Tilt
Operative Norm	GB T/ CCS1/CCS2/ Mixed gun
Measurement Accuracy	Level 1
Barrel Length	5m
Protection Level	IP54 (charging pile body), IP55 (gun tip-coupled state)
Noise Control	≤65dB
Cooling-Down Method	forced air cooling
MTBF	100,000 hours
